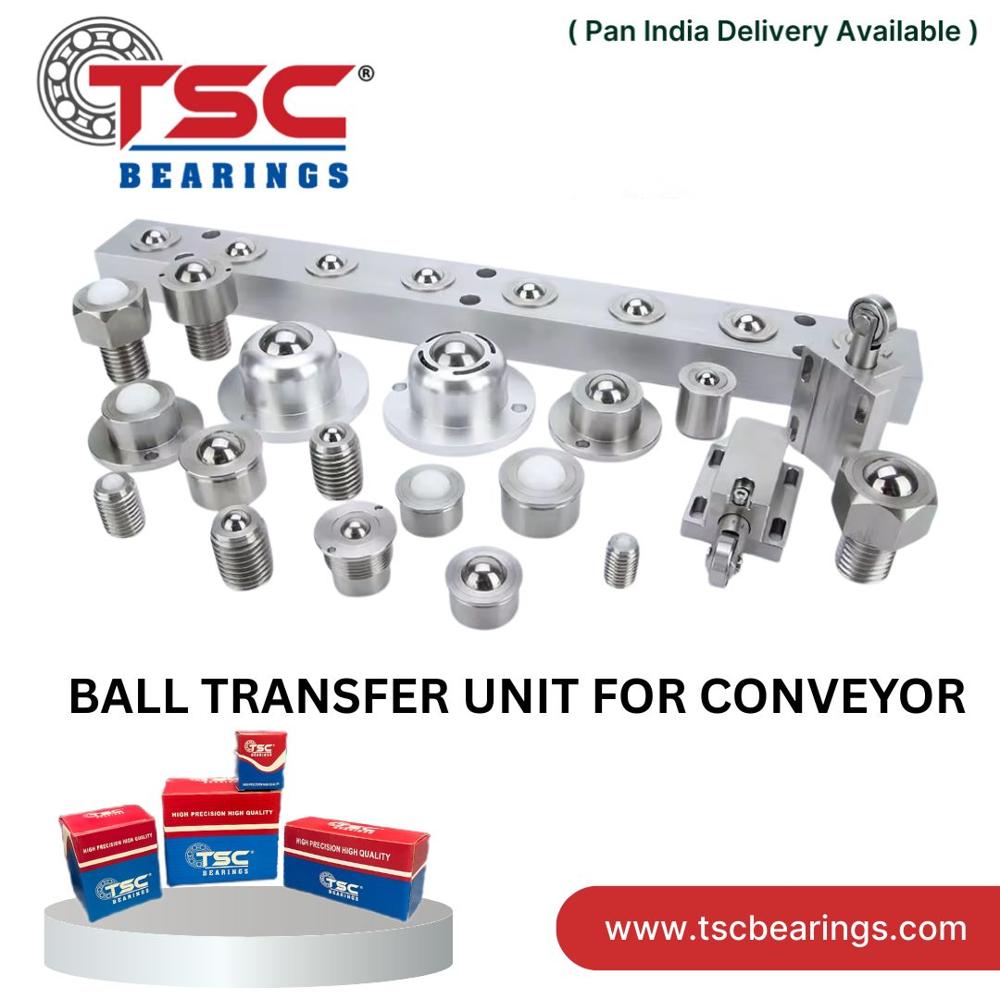

TSC CY-18A BALL TRANSFER UNIT

Price 300.0 INR/ piece

Get a Price/Quote

MOQ : 1 piece

TSC CY-18A BALL TRANSFER UNIT Specification

Inside Diameter
18 mm

Retainer
Steel

Cage Material
Steel

Lubrication Type
Grease

Precision Rating
Standard

Thickness
10 mm

Bearing Type
Ball Transfer

Material
Carbon Steel

Structure
Ball Transfer Unit

Number Of Rows
Single

Bore Size
18 mm

Outside Diameter
28 mm

Load Capacity
30 kg

Application
Material Handling, Conveyor, Packaging

Main Ball Diameter
18 mm

Operating Temperature Range
-10°C to +80°C

Corrosion Resistance
Moderate

Finish
Zinc Plated

Mounting Method
Press Fit

Housing Shape
Cylindrical

Overall Height
14 mm

About TSC CY-18A BALL TRANSFER UNIT

A Ball Transfer Unit (BTU) is a mechanical device allowing omnidirectional movement of loads via a spherical ball.

Key Features

- Spherical Ball: Main rolling element for multidirectional movement.

- Housing: Contains and supports the ball.

- Load Capacity: Varies by design, size.

- Omnidirectional: Facilitates movement in any horizontal direction.

- Low Friction: Enables easy load shifting.

Components

- Top Ball: Exposed spherical ball for contact with load.

- Support Balls: Smaller balls supporting the top ball.

- Housing/Body: Structural containment.

- Mounting: Often flange or base mounted. Applications

- Conveyor Systems: For diverting, sorting loads.

- Material Handling: Omnidirectional load movement.

- Transfer Tables: Facilitating load positioning.

- Packaging Machinery: Item handling.

- Work Positioning: In manufacturing, assembly.

Advantages

- Omnidirectional Movement: Flexibility in load handling.

- Smooth Transfer: Low friction aids movement.

- Space Efficiency: Compact designs available. Types

- Heavy-Duty BTUs: For industrial loads.

- Light-Duty: For lighter applications.

- Corrosion-Resistant: For harsh environments.

Considerations

- Load Rating: Match to application loads.

- Ball Material: Steel, stainless for durability.

- Environmental Factors: Protection from debris.

- Maintenance: Periodic checks for wear, lubrication.

Industries

- Logistics: Sorting, transfer systems.

- Manufacturing: Workpiece handling.

- Automotive: Component handling.

- Aerospace: Parts positioning.

Efficient Material Handling Solution

The TSC CY-18A Ball Transfer Unit is tailored to optimize transfer operations in conveyors or packaging lines, thanks to its robust carbon steel construction and standard precision rating. Whether youre a manufacturer, exporter, or retailer, this unit delivers durability and efficiency for everyday industrial use. Its moderate corrosion resistance and easy press-fit mounting streamline installation and maintenance.

Versatile Applications Across Industries

Designed for seamless movement in multiple directions, the CY-18A suits a wide range of environments, from warehouses to factories. Its performance within -10C to +80C and 30 kg load capacity ensure adaptability, meeting the needs of fabricators, distributors, and traders across India. This unit is well-suited for usage where speed and flexibility are paramount.

FAQs of TSC CY-18A BALL TRANSFER UNIT:

Q: How is the TSC CY-18A Ball Transfer Unit installed?

A: The CY-18A is designed for press-fit mounting, allowing easy and secure installation into compatible holes without additional fasteners or complex tools.

Q: What are the primary applications of this ball transfer unit?

A: This unit is mainly used in material handling, conveyor systems, and packaging processes where smooth, multidirectional movement of goods is required.

Q: When should I consider using this specific model?

A: Choose the CY-18A when your application demands up to 30 kg load capacity, moderate corrosion resistance, and operation within temperatures of -10C to +80C.

Q: Where can the TSC CY-18A be sourced in India?

A: The CY-18A is available through authorized dealers, distributors, wholesalers, and retailers across India who specialize in material handling and conveyor components.

Q: What is the benefit of using a zinc-plated, carbon steel transfer unit?

A: Zinc plating offers moderate corrosion resistance, while the carbon steel structure delivers strength and longevity for repetitive use in demanding industrial environments.

Q: How should the unit be maintained for optimal performance?

A: Regularly check and replenish the grease lubrication to ensure smooth ball movement and prevent wear, helping maintain efficiency and extending the units service life.

Q: What distinguishes the CY-18A from other ball transfer units?

A: The CY-18A features an optimal balance of an 18 mm ball, press-fit cylindrical housing, standard precision, and compatibility with single-row configurations, making it suitable for a wide range of industrial handling tasks in India.
