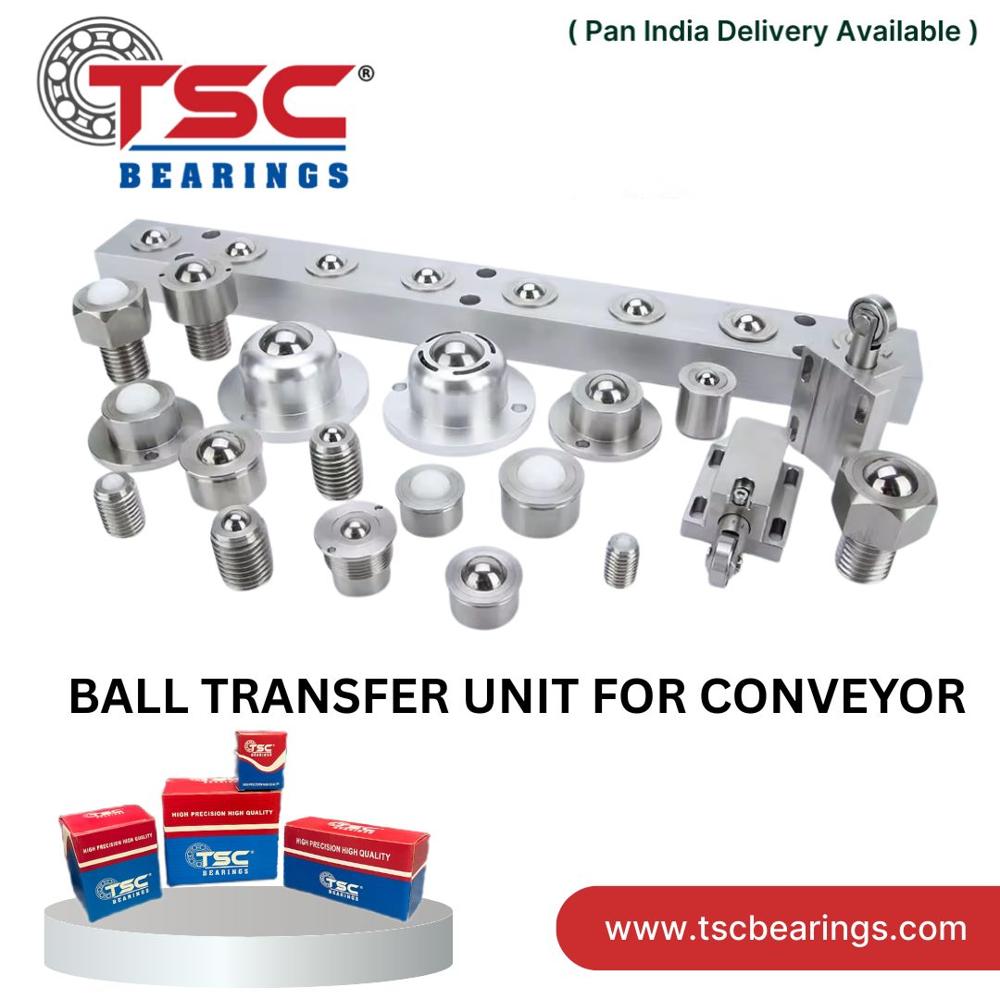

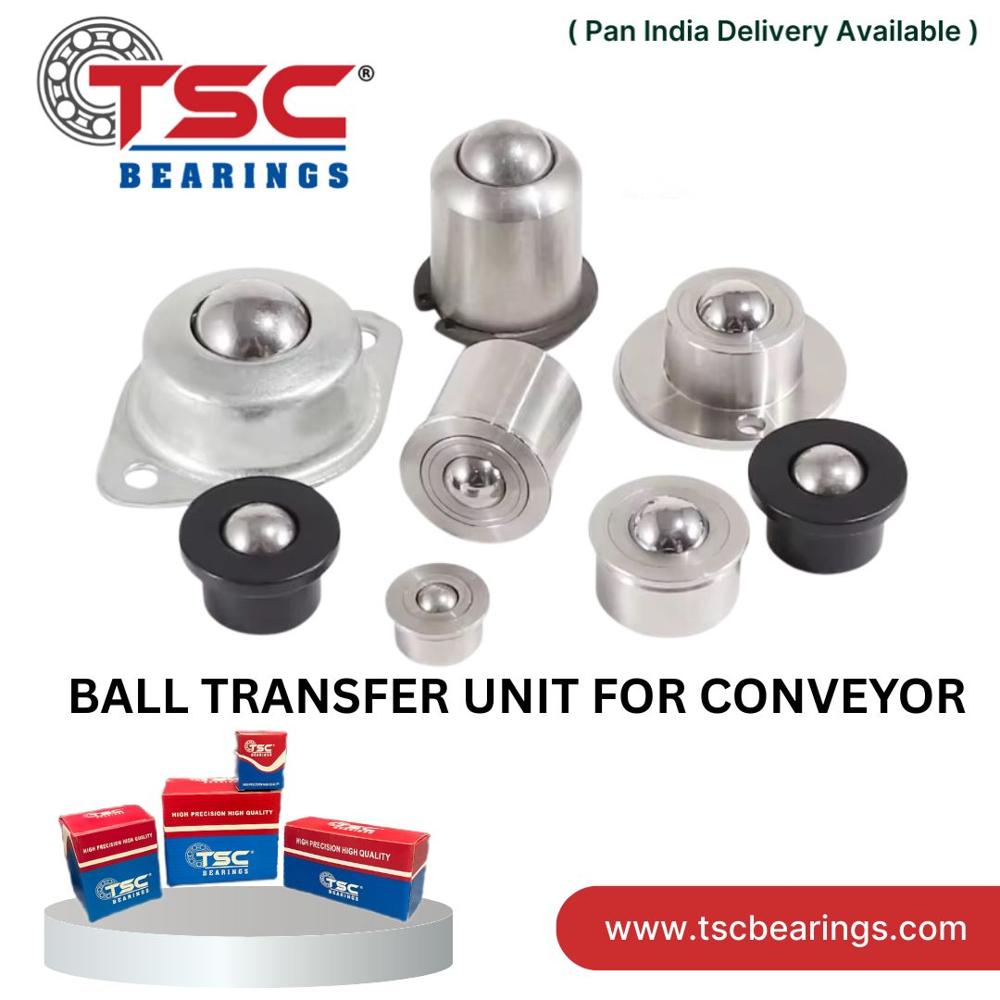

TSC KSM 38 BALL TRANSFER UNIT

Price 500.0 INR/ PIECE

Get a Price/Quote

MOQ : 1 PIECE

TSC KSM 38 BALL TRANSFER UNIT Specification

Cage Material
Steel

Thickness
22 mm

Retainer
Steel

Inside Diameter
38 mm

Precision Rating
Standard

Lubrication Type
Grease

Bearing Type
Ball Transfer

Material
Carbon Steel

Structure
Ball Transfer Unit

Seals Type
Dust Proof

Number Of Rows
Single Row

Bore Size
38 mm

Outside Diameter
52 mm

Load Capacity
150 kg

Operating Temperature Range
-20°C to +80°C

Overall Height
31 mm

Model
KSM 38

Mount Type
Flange Mounted

Corrosion Resistance
Yes

Installation Holes
3

Housing Finish
Zinc Plated

Core Ball Diameter
38 mm

Application
Material Handling, Conveyor Systems, Transfer Tables, Assembly Lines

Installation Hole Diameter
6 mm

Main Ball Material
Chrome Steel

About TSC KSM 38 BALL TRANSFER UNIT

A Ball Transfer Unit (BTU) is a mechanical device allowing omnidirectional movement of loads via a spherical ball.

Key Features

- Spherical Ball: Main rolling element for multidirectional movement.

- Housing: Contains and supports the ball.

- Load Capacity: Varies by design, size.

- Omnidirectional: Facilitates movement in any horizontal direction.

- Low Friction: Enables easy load shifting.

Components

- Top Ball: Exposed spherical ball for contact with load.

- Support Balls: Smaller balls supporting the top ball.

- Housing/Body: Structural containment.

- Mounting: Often flange or base mounted. Applications

- Conveyor Systems: For diverting, sorting loads.

- Material Handling: Omnidirectional load movement.

- Transfer Tables: Facilitating load positioning.

- Packaging Machinery: Item handling.

- Work Positioning: In manufacturing, assembly.

Advantages

- Omnidirectional Movement: Flexibility in load handling.

- Smooth Transfer: Low friction aids movement.

- Space Efficiency: Compact designs available. Types

- Heavy-Duty BTUs: For industrial loads.

- Light-Duty: For lighter applications.

- Corrosion-Resistant: For harsh environments.

Considerations

- Load Rating: Match to application loads.

- Ball Material: Steel, stainless for durability.

- Environmental Factors: Protection from debris.

- Maintenance: Periodic checks for wear, lubrication.

Industries

- Logistics: Sorting, transfer systems.

- Manufacturing: Workpiece handling.

- Automotive: Component handling.

- Aerospace: Parts positioning.

Reliable Performance in Material Handling

The TSC KSM 38 Ball Transfer Unit is engineered for efficient, multidirectional load movement in busy industrial settings. Its chrome steel main ball and corrosion-resistant, zinc-plated housing ensure longevity even during continuous operation. The dust-proof seals further protect internal components against contaminants, maintaining smooth performance and minimizing maintenance needs.

Easy Installation and Versatile Application

Featuring a flange mount design with three 6 mm installation holes, the KSM 38 unit allows for quick, secure attachment to various surfaces. It finds application in conveyor systems, transfer tables, and assembly lines. Its versatility makes it suitable for manufacturers, fabricators, distributors, and integrators looking to enhance workflow efficiency.

FAQs of TSC KSM 38 BALL TRANSFER UNIT:

Q: How do you install the TSC KSM 38 Ball Transfer Unit?

A: Installation involves aligning the units flange with your mounting surface and securing it with bolts through the three 6 mm diameter installation holes. This simple process ensures a stable fit for both new systems and retrofits.

Q: What benefits does the KSM 38 Ball Transfer Unit provide in conveyor systems?

A: The unit offers 360-degree movement for heavy items, minimizing manual handling and reducing worker fatigue. Its 150 kg load capacity and anti-corrosive properties ensure dependable, long-term service in busy environments.

Q: When should I consider using a ball transfer unit like the KSM 38?

A: The KSM 38 is ideal when you need to move, rotate, or reorient heavy or bulky materials with easesuch as in transfer tables, material handling lines, and assembly operations requiring multidirectional movement.

Q: Where can the TSC KSM 38 Ball Transfer Unit be used effectively?

A: Commonly installed in industrial facilities across India, its suitable for conveyor systems, warehouse assembly lines, transfer tables, and automated material handling setups demanding smooth and flexible load movement.

Q: What makes the KSM 38 suitable for harsh industrial environments?

A: Its chrome steel ball, steel retainer, and dust-proof construction help resist wear and contamination. The zinc-plated finish adds corrosion protection, and the units robust design supports high load and temperature variations.

Q: How is the KSM 38 Ball Transfer Unit maintained for longevity?

A: Routine checks for cleanliness and regreasing the unit as necessary help ensure smooth operation. The dust-proof seals keep most contaminants out, minimizing maintenance needs.
