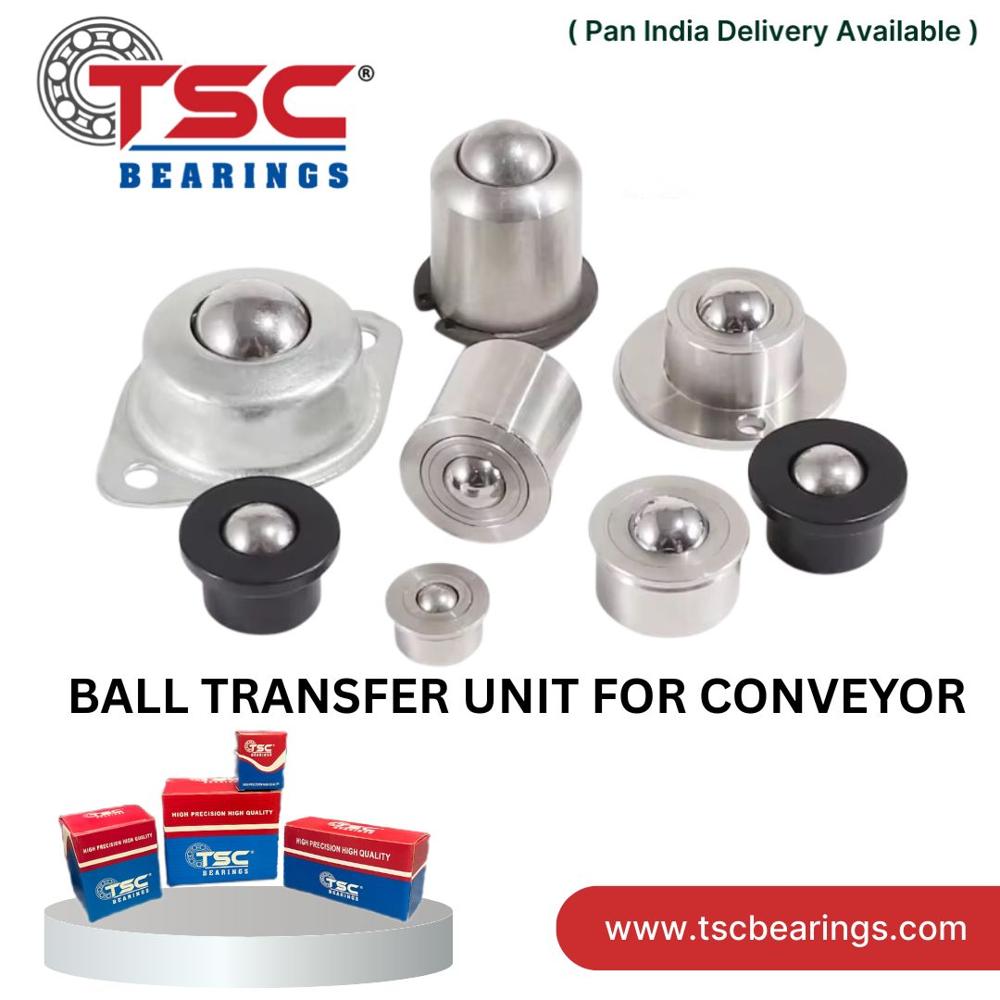

TSC CY-16B BALL TRANSFER UNIT

Name: TSC CY-16B BALL TRANSFER UNIT
Brand: AGARWAL INDUSTRIES
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TSC CY-16B BALL TRANSFER UNIT Specification

Retainer
Pressed Steel

Lubrication Type
Grease

Thickness
13 mm

Inside Diameter
16 mm

Precision Rating
Standard

Cage Material
Stainless Steel

Usage
Industrial

Bearing Type
Ball Transfer

Material
Stainless Steel

Size
Standard Sizes

Structure
Ball Transfer Unit

Seals Type
Sealed

Product Type
Ball Transfer Unit

Number Of Rows
Single Row

Bore Size
16 mm

Outside Diameter
28 mm

Load Capacity
30 Kg

Warranty
1 Year

Operating Temperature
-20°C to +80°C

Surface Treatment
Polished

Ball Diameter
16 mm

Main Ball Hardness
HRC 50-62

Corrosion Resistance
High

Application
Conveyor, Material Handling, Assembly Lines

Mounting Type
Flange Mount

About TSC CY-16B BALL TRANSFER UNIT

A Ball Transfer Unit (BTU) is a mechanical device allowing omnidirectional movement of loads via a spherical ball.

Key Features

- Spherical Ball: Main rolling element for multidirectional movement.

- Housing: Contains and supports the ball.

- Load Capacity: Varies by design, size.

- Omnidirectional: Facilitates movement in any horizontal direction.

- Low Friction: Enables easy load shifting.

Components

- Top Ball: Exposed spherical ball for contact with load.

- Support Balls: Smaller balls supporting the top ball.

- Housing/Body: Structural containment.

- Mounting: Often flange or base mounted. Applications

- Conveyor Systems: For diverting, sorting loads.

- Material Handling: Omnidirectional load movement.

- Transfer Tables: Facilitating load positioning.

- Packaging Machinery: Item handling.

- Work Positioning: In manufacturing, assembly.

Advantages

- Omnidirectional Movement: Flexibility in load handling.

- Smooth Transfer: Low friction aids movement.

- Space Efficiency: Compact designs available. Types

- Heavy-Duty BTUs: For industrial loads.

- Light-Duty: For lighter applications.

- Corrosion-Resistant: For harsh environments.

Considerations

- Load Rating: Match to application loads.

- Ball Material: Steel, stainless for durability.

- Environmental Factors: Protection from debris.

- Maintenance: Periodic checks for wear, lubrication.

Industries

- Logistics: Sorting, transfer systems.

- Manufacturing: Workpiece handling.

- Automotive: Component handling.

- Aerospace: Parts positioning.

Reliable Multidirectional Movement

The TSC CY-16B Ball Transfer Unit enables seamless movement of goods in multiple directions, making it indispensable for conveyor and assembly line operations. Its robust stainless steel construction ensures consistent performance in demanding industrial environments and under varying temperatures.

Easy Installation & Maintenance

Featuring a flange mount design and standard size compatibility, the CY-16B unit allows for straightforward installation across diverse industrial setups. The sealed construction and integrated grease lubrication system reduce maintenance demands, helping extend the service life.

FAQs of TSC CY-16B BALL TRANSFER UNIT:

Q: How do I install the TSC CY-16B Ball Transfer Unit in a conveyor system?

A: The TSC CY-16B Ball Transfer Unit utilizes a flange mount design, allowing it to be easily secured to conveyor frames or material handling surfaces using standard fasteners. Ensure the mounting area is appropriately prepared for a secure fit and alignment.

Q: What are the main benefits of using this ball transfer unit in industrial applications?

A: This unit offers smooth, multidirectional movement of heavy materials, reduces manual handling, and enhances efficiency in assembly lines and conveyor systems. Its high corrosion resistance and sturdy stainless steel build make it suitable for harsh industrial settings.

Q: Can the CY-16B operate in extreme temperature environments?

A: Yes, this ball transfer unit is designed to function reliably in temperatures ranging from -20C to +80C, making it suitable for a wide array of industrial environments.

Q: Where is the TSC CY-16B Ball Transfer Unit commonly used?

A: It finds application in various settings such as conveyors, material handling platforms, assembly lines, and packaging stations, especially in sectors requiring efficient movement of products or components.

Q: What process ensures the long-term durability of this unit?

A: The use of high-quality stainless steel, a polished surface for reduced friction, sealed construction, and consistent grease lubrication all contribute to its long-term durability and low maintenance requirements.

Q: What is the load capacity and ball hardness of the CY-16B Ball Transfer Unit?

A: The CY-16B unit supports loads up to 30 kg and features a main ball with a hardness rating of HRC 50-62, ensuring resilience against heavy use and mechanical wear.
