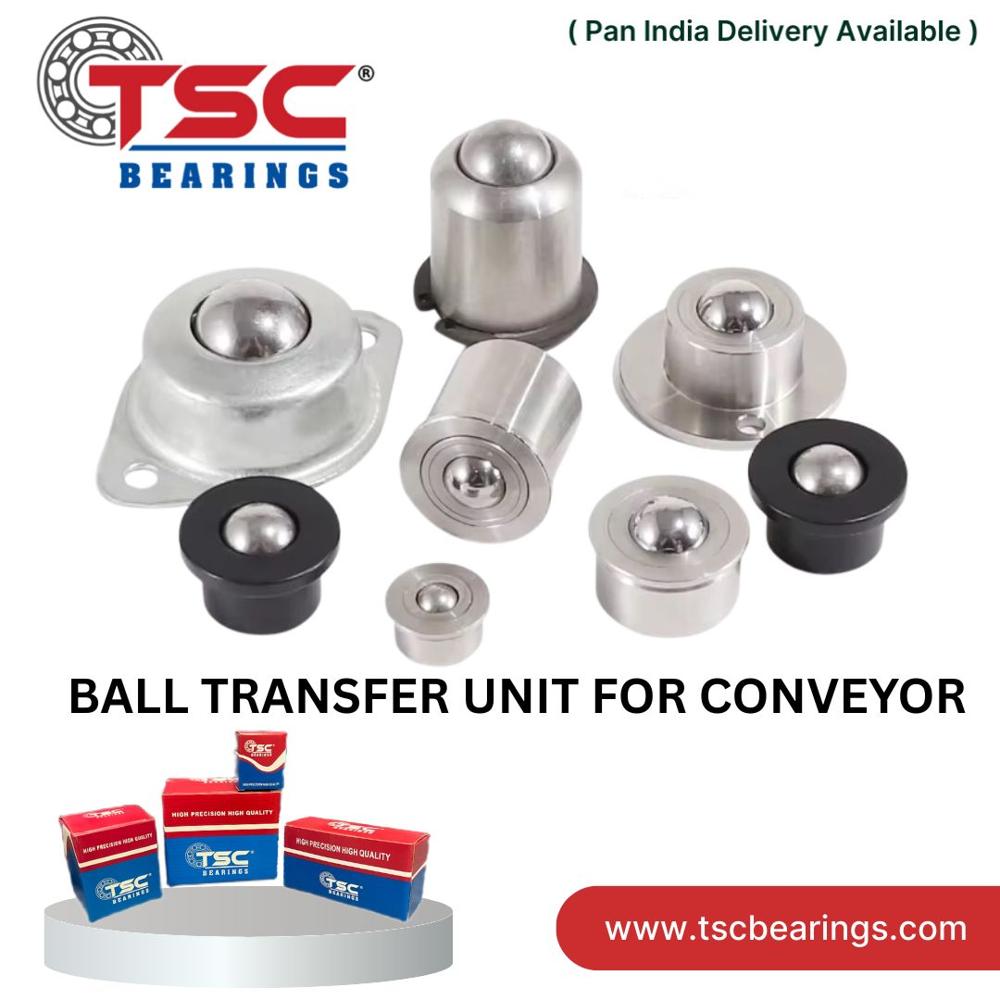

TSC CY-30A BALL TRANSFER UNIT

Price 500.0 INR/ piece

Get a Price/Quote

MOQ : 1 piece

TSC CY-30A BALL TRANSFER UNIT Specification

Thickness
23 mm

Inside Diameter
30 mm (main ball)

Lubrication Type
Pre-lubricated

Cage Material
Steel

Retainer
Steel

Precision Rating
Standard

Bearing Type
Ball Transfer

Material
Steel Body, Carbon Steel Ball

Structure
Ball Transfer Unit

Seals Type
No Seals

Number Of Rows
Single

Bore Size
30 mm

Outside Diameter
38 mm

Load Capacity
50 kg

Ball Material
Carbon Steel

Model
CY-30A

Operating Temperature Range
-20°C to +80°C

Total Height
27 mm

Housing Material
Pressed Steel

Surface Finish
Zinc Plated

Mounting Type
Flange Mount

Main Ball Diameter
30 mm

Insertion Hole Diameter
31 mm

Application
Material Handling, Conveyor Systems, Assembly Lines

About TSC CY-30A BALL TRANSFER UNIT

A Ball Transfer Unit (BTU) is a mechanical device allowing omnidirectional movement of loads via a spherical ball.

Key Features

- Spherical Ball: Main rolling element for multidirectional movement.

- Housing: Contains and supports the ball.

- Load Capacity: Varies by design, size.

- Omnidirectional: Facilitates movement in any horizontal direction.

- Low Friction: Enables easy load shifting.

Components

- Top Ball: Exposed spherical ball for contact with load.

- Support Balls: Smaller balls supporting the top ball.

- Housing/Body: Structural containment.

- Mounting: Often flange or base mounted. Applications

- Conveyor Systems: For diverting, sorting loads.

- Material Handling: Omnidirectional load movement.

- Transfer Tables: Facilitating load positioning.

- Packaging Machinery: Item handling.

- Work Positioning: In manufacturing, assembly.

Advantages

- Omnidirectional Movement: Flexibility in load handling.

- Smooth Transfer: Low friction aids movement.

- Space Efficiency: Compact designs available. Types

- Heavy-Duty BTUs: For industrial loads.

- Light-Duty: For lighter applications.

- Corrosion-Resistant: For harsh environments.

Considerations

- Load Rating: Match to application loads.

- Ball Material: Steel, stainless for durability.

- Environmental Factors: Protection from debris.

- Maintenance: Periodic checks for wear, lubrication.

Industries

- Logistics: Sorting, transfer systems.

- Manufacturing: Workpiece handling.

- Automotive: Component handling.

- Aerospace: Parts positioning.

Versatile Material Handling Solution

The CY-30A Ball Transfer Unit streamlines the movement of items in factories, warehouses, and assembly lines. Its sturdy carbon steel ball glides with minimal resistance, enabling easy shifting and positioning of goods. The unit is ideal for use in conveyor systems and tables, bringing flexibility and efficiency to various industrial processes.

Durable Construction for Long-Lasting Service

Built with a pressed steel body and a zinc-plated finish, the CY-30A offers exceptional durability and corrosion resistance. The pre-lubricated main ball and steel retainer ensure smooth performance and reduced maintenance, even in demanding environments. Suited for both large-scale and small-scale material handling setups, it provides reliable service over time.

Easy Integration and Installation

The flange mount design, standard bore size, and pre-lubricated, maintenance-friendly construction facilitate hassle-free installation. With a compact structure and 50 kg load capacity, the CY-30A adapts seamlessly to existing conveyors or assembly lines, making it a practical choice for distributors, fabricators, and manufacturers across India.

FAQs of TSC CY-30A BALL TRANSFER UNIT:

Q: How is the TSC CY-30A Ball Transfer Unit typically installed?

A: This unit features a flange mount design for secure fitting. The recommended insertion hole diameter is 31 mm, making installation straightforward on most conveyor tables or material handling platforms.

Q: What are the primary applications of the CY-30A Ball Transfer Unit?

A: It is widely used in material handling systems, conveyor lines, and assembly setups. Its design allows for the effortless movement and orientation of items, facilitating loading, transfer, and positioning tasks in industrial and warehouse environments.

Q: When should I choose a CY-30A ball transfer unit with a carbon steel ball?

A: Select the CY-30A when durability, cost-effectiveness, and load capacity are required for handling up to 50 kg. The carbon steel ball is suitable for standard industrial applications without exposure to highly corrosive substances.

Q: Where can the CY-30A ball transfer unit be sourced in India?

A: This unit is available through dealers, distributors, exporters, fabricators, manufacturers, producers, retailers, suppliers, traders, and wholesalers throughout India, ensuring broad availability for different business needs.

Q: What is the benefit of the pre-lubricated ball design?

A: The pre-lubrication reduces friction and wear, resulting in smoother performance and minimizing the need for frequent maintenance or manual lubrication during operation.

Q: How does the absence of seals affect the units performance?

A: With no seals, the CY-30A offers lower rolling resistance and easier movement but is best suited for cleaner environments to prevent debris from affecting its function.
