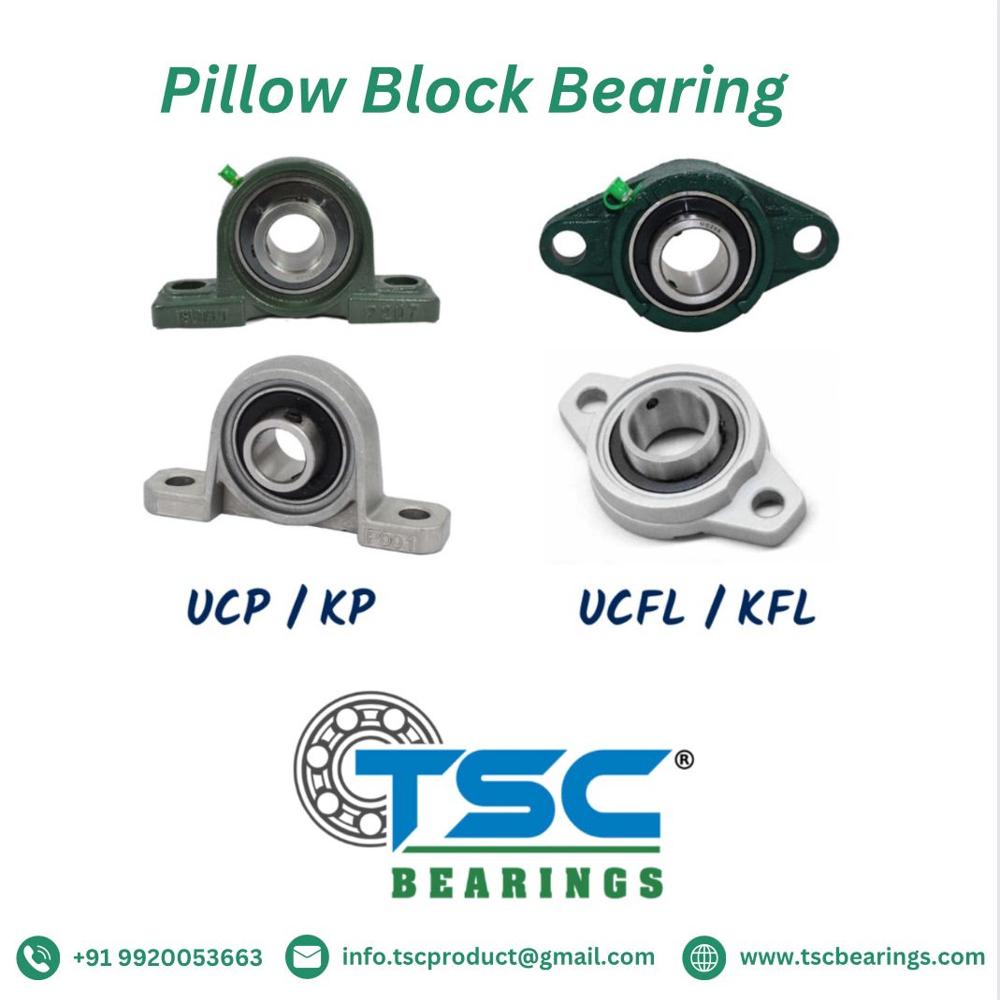

TSC KFL004 PILLOW BLOCK SERIES

Price 180.0 INR/ piece

Get a Price/Quote

MOQ : 1 piece

TSC KFL004 PILLOW BLOCK SERIES Specification

Precision Rating
P0 (Standard)

Cage Material
Steel

Thickness
Varies by housing type

Retainer
Steel

Inside Diameter
20 mm

Lubrication Type
Grease

Bearing Type
Insert Bearing

Material
Pressed Steel

Structure
Pillow Block

Seals Type
Double Seal

Number Of Rows
Single

Bore Size
20 mm

Outside Diameter
Custom for KFL004 Series housing

Limiting Speed
Up to 8000 rpm

Load Capacity
Standard for KFL004 Series

Corrosion Resistance
High, due to zinc plating

Mounting Type
Flange with 2 Bolt

Application
Conveyors, Agricultural Machinery, Industrial Equipment

Operating Environment
Indoor/Outdoor

Housing Finish
Zinc Plated

Shaft Fit
Set Screw

Temperature Range
-20°C to +120°C

Dynamic Load Rating
7.6 kN

Static Load Rating
3.85 kN

Model Number
KFL004

About TSC KFL004 PILLOW BLOCK SERIES

The KFL pillow block series is a type of mounted bearing unit designed for supporting rotating shafts.
Key Features
- Two-Bolt Mounting: Easy installation with a simple bolt-on design.
- Self-Aligning: Accommodates minor shaft misalignments.
- Ball Bearing Type: Typically contains a ball bearing for smooth rotation.
- Compact Design: Suitable for space-constrained applications.
Specifications
- Bore Diameter: Various sizes available (e.g., KFL000, KFL001, KFL002, etc.).
- Material: Housing often made from cast iron or pressed steel.
- Sealing: Some models come with seals or shields for protection.
Applications
- Conveyor Systems: For supporting conveyor shafts.
- Material Handling: Facilitates movement and positioning of loads.
- Agricultural Machinery: Used in various agricultural equipment.
- General Machinery: Supports rotating shafts in machinery.
Series Variations
- KFL Series: Two-bolt pillow block bearings.
- KFLP Series: May refer to variations or specific designs within the KFL series.
Benefits
- Easy Installation: Simple bolt-on design.
- Maintenance: Relatively low maintenance requirements.
- Load Capacity: Suitable for various load applications.

Durable Housing for Aggressive Environments

The zinc-plated housing of the KFL004 Pillow Block offers exceptional corrosion resistance, making it suitable for outdoor and high-moisture indoor applications. Its robust construction ensures a long service life, even in environments where exposure to water or chemicals is a concern.

Versatile Applications Across Industries

With a standard KFL004 design, set screw shaft fit, and double-sealed bearing, this pillow block is perfect for use in conveyors, industrial machinery, and agricultural equipment. Its compatibility with various mounting configurations equips it for diverse industrial needs.

Optimized for Reliability and Performance

The KFL004 model supports heavy dynamic and static loads while maintaining stability at speeds up to 8000 rpm. The pressed steel, single-row structure combined with grease lubrication and steel retainer ensures reliable, maintenance-friendly operation over a temperature range from -20C to +120C.

FAQs of TSC KFL004 PILLOW BLOCK SERIES:

Q: How should the TSC KFL004 Pillow Block be mounted?

A: The KFL004 Pillow Block features a flange with two bolt holes, allowing straightforward installation onto machinery frames or bases. Secure the unit with appropriate M-type bolts, ensuring the shaft is properly aligned within the 20 mm bore for smooth operation.

Q: What applications can benefit from using the KFL004 Pillow Block Series?

A: This bearing unit is ideal for conveyors, agricultural machinery, and various industrial equipment that require reliable shaft support and robust corrosion resistance in either indoor or outdoor settings.

Q: When should routine maintenance be performed on the KFL004 Pillow Block?

A: For optimal performance, check the bearings lubrication and seal condition at regular intervals, typically coinciding with machine service schedules. Grease relubrication is recommended periodically, depending on operating conditions and load.

Q: Where is it suitable to install the KFL004 Pillow Block?

A: Thanks to its zinc-plated housing and double seal, the KFL004 can be installed in both indoor and outdoor environments, including areas prone to moisture, dust, or mild chemicals.

Q: What are the benefits of a set screw shaft fit in the KFL004?

A: The set screw shaft fit securely locks the shaft in place, minimizing slippage under load. This feature is especially beneficial for applications involving frequent starts, stops, or vibration, helping to maintain alignment and extend bearing life.

Q: How does the KFL004 ensure long-term bearing performance?

A: The double-seal design helps keep contaminants out and retain lubrication, reducing maintenance needs. In addition, the robust steel cage and grease lubrication further protect against wear and heat build-up, enhancing durability.
