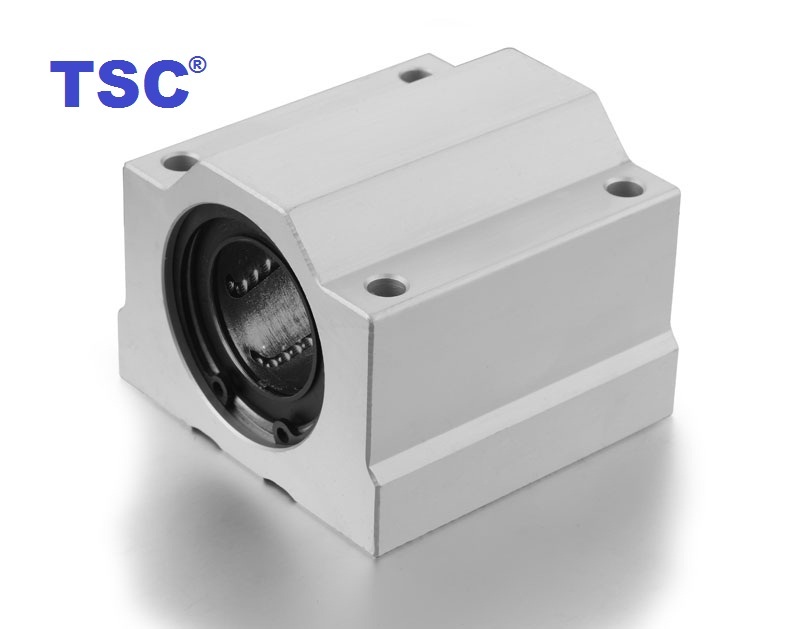

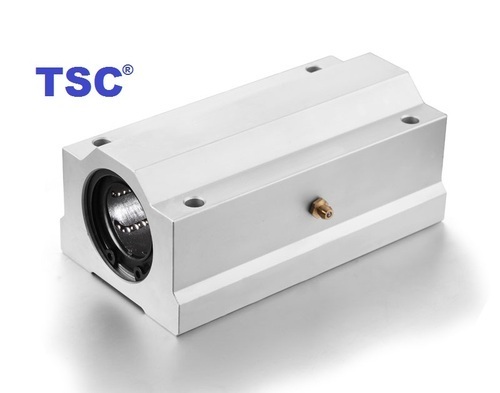

SC30UU AND SC30LUU Bearing

Get a Price/Quote

MOQ : 100 Pieces

SC30UU AND SC30LUU Bearing Specification

Lubrication Type
Grease Lubrication

Cage Material
Steel

Precision Rating
P0/P6

Inside Diameter
30 mm

Thickness
64 mm (SC30UU), 117 mm (SC30LUU)

Retainer
Yes

Usage
Industrial

Bearing Type
Linear Bearing

Size
Standard

Material
Stainless Steel

Structure
Linear Motion Ball Bearing

Product Type
SC L UU SC & SC L UU Bearing

Seals Type
UU (Rubber Sealed)

Number Of Rows
Double Row

Color
Silver

Bore Size
30 mm

Outside Diameter
45 mm

Limiting Speed
7000 rpm

Load Capacity
High Load Capacity

Mounting Method
Four-Bolt Flange

Housing Type
Aluminum Housing

Shaft Compatibility
30 mm Diameter Shaft

Application
CNC Machinery, Automation Equipment, 3D Printers

Temperature Range
-20°C to 80°C

SC30UU AND SC30LUU Bearing Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Week

Delivery Time
7 Days

About SC30UU AND SC30LUU Bearing

Linear bearings are mechanical devices that enable linear motion with minimal friction along a straight path. These components, also known as linear bushings, play a crucial role in guiding objects along linear shafts or linear rails, facilitating precise movement in a controlled manner.

Precision Performance for Industrial Applications

SC30UU and SC30LUU linear bearings are built to deliver accurate and smooth linear motion in CNC machinery, 3D printers, and other industrial automation equipment. They accommodate high speeds up to 7000 rpm and are precision-rated at P0/P6, making them suitable for applications where consistent reliability and minimal friction are crucial.

Durable Construction and Easy Installation

Constructed with a strong aluminum housing and stainless steel balls and cages, these bearings are designed for resilience and extended lifespan. The four-bolt flange mounting system makes installation straightforward, ensuring a secure fit for 30 mm diameter shafts. Rubber seals provide extra protection against contaminants, supporting stable performance over time.

Versatility and User-Friendly Maintenance

Thanks to their robust structure, high load capacity, and compatibility with standard shafts, SC30UU and SC30LUU bearings excel in a wide range of uses. Grease lubrication and rubber seals reduce maintenance needs, while their compatibility with various industries means they meet the diverse requirements of dealers, manufacturers, and suppliers across India.

FAQ's of SC30UU AND SC30LUU Bearing:

Q: How do I choose between the SC30UU and SC30LUU bearing models for my project?

A: The main difference is in their length: the SC30UU is 64 mm thick, while the SC30LUU measures 117 mm. Choose SC30UU for standard support requirements or SC30LUU when extended support and higher rigidity are needed along the shaft.

Q: What shaft diameter is compatible with SC30UU and SC30LUU bearings?

A: Both SC30UU and SC30LUU are specifically designed to fit 30 mm diameter shafts, ensuring proper alignment and superior load distribution in linear motion set-ups.

Q: Where can I use SC30UU and SC30LUU linear bearings?

A: These bearings are ideal for industrial environments such as CNC machinery, automation equipment, and 3D printers. Their high load capacity and precision rating make them suitable for various automated systems requiring linear movement.

Q: What is the recommended process for mounting these bearings?

A: To mount, align the bearing's four-bolt flange with the intended surface for secure attachment. Tighten all bolts evenly to ensure correct positioning and stability on a 30 mm shaft.

Q: How do the rubber seals (UU type) benefit the bearing's operation?

A: The rubber seals effectively protect internal components from dust, debris, and moisture, enhancing the bearing's lifespan and ensuring smooth, consistent operation even in challenging industrial settings.

Q: What temperature range can these bearings operate within?

A: SC30UU and SC30LUU bearings are engineered to perform continuously between -20C and 80C, accommodating a variety of operating environments and industrial processes.
